User Guide/⏳Using Stackd/Projects/Project Details

Project Details

Add Design Information

Watch the Video
  1. Navigate to “Projects”
  1. Select the project you want to open from the project list
  1. Navigate to “Design Information”
  1. Complete all required fields and any optional fields where information is available
  1. If the applicable Authority Having Jurisdiction is not available, add it in
    Lists

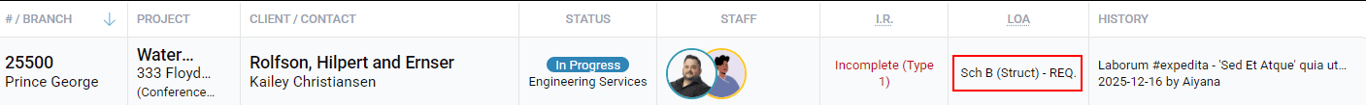

  1. Selected Schedule Requirement document types are tracked in the Letters of Assurance (LOA) column on the Projects list page
notion image

  1. Click “Save Changes”
💡
Design Information must be completed before adding Codes & Guidelines or a Risk Assessment, as available fields depend on it.
💡
Adding Project Tags improves filtering. If a required tag is not available, see
Tags.

Add Codes & Guidelines

⚠️
Design Information must be completed before adding Codes & Guidelines.
Watch the Video
  1. Navigate to “Projects”
  1. Select the project you want to open from the project list
  1. Navigate to “Codes & Guidelines”
  1. Select all applicable codes and guidelines
  1. Click “Save Changes”
💡
Codes and guidelines can be managed in
Lists.

Add Risk Assessment

⚠️
Design Information must be completed before adding a Risk Assessment.
Watch the Video
  1. Navigate to “Projects”
  1. Select the project you want to open from the project list
  1. Navigate to “Risk Assessment”
  1. Use “Populate from template” field if desired or available, or complete all applicable fields manually
  1. Click “Save Changes”
  1. Create a template by selecting “More Actions”

notion image

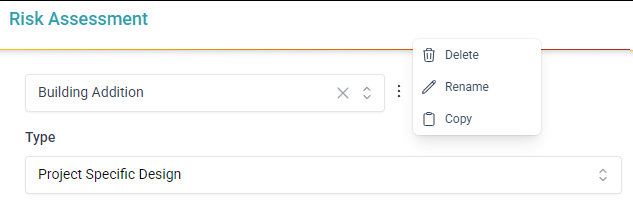

  1. Edit an existing template using the ellipsis menu

notion image
💡
If required Engineer of Record or Engineer in Training roles are missin, see
Manage Roles & Permissions.

Add Custom Line Items to Project Timeline

Watch the Video
  1. Navigate to “Projects”
  1. Select the project you want to edit from the project list

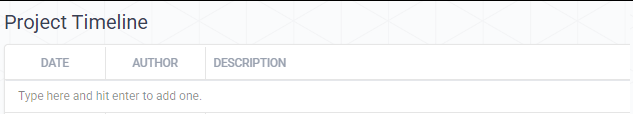

  1. Navigate to “Timeline”

notion image

  1. Click the first empty row in the timeline table
  1. Enter the required information
  1. Press the “Enter” key to save the entry
ℹ️
The date and author fields are system-generated and cannot be edited.
🔐
Custom timeline entries cannot be edited once saved.

Edit a Project’s Details

Watch the Video
  1. Navigate to “Projects”
  1. Select the project you want to edit from the project list
  1. Select “Edit” from the
    Project Actions Bar

notion image

  1. Update project settings, including the primary contact, location details, and project information from the slide-over panel
  1. Click “Save Changes”
